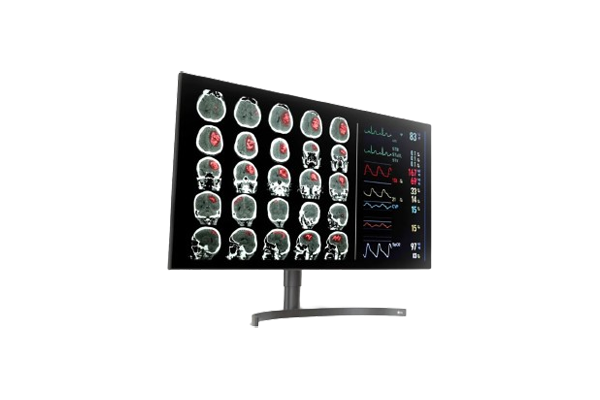

Diagnostic Monitor
Multi-resolution Mode (8/6/4MP) 31.5-inch 8MP (3840x2160) IPS Display | 178° Wide Viewing Angle
The 32HL512D offers 8MP, 6MP and 4MP resolution options to provide optimized image quality for various modalities. Convenient access to resolution settings for different needs such as CR, CT, and endoscopy, makes it easier to select optimal image viewing conditions. In addition, the large 31.5-inch 8MP IPS display allows medical professionals to easily distinguish even delicate details such as CT and angiography. With its wide viewing angle, the IPS panel can provide clear images from all angles with minimal distortion.
Efficient Diagnostic Data Management
PBP | Dual Controller
The 2PBP feature allows medical professionals to view images from multiple devices at once. With Dual Controller, easily view and review images from multiple devices connected conveniently to one single screen, keyboard, and mouse. You can review patient information and clinical info simultaneously, maximizing work efficiency.
Optimized Screen for Diagnostic Review
Pathology Mode | 4-Side Virtually Borderless Design
In the clinical pathology mode, the 32HL512D reproduces the same detail and accurate color shown under a microscope directly onto the monitor, to help healthcare professionals make more accurate diagnoses. Also, its 4-Side Virtually Borderless Design provides a more immersive visual experience for diagnosis.
Specification
Panel:
Panel Type : IPS
Inch (Aspect Ratio): 31.5-inch (16:9)
Resolution : 8MP (3840 x 2160)
Surface Treatment:Anti-glare, 3H
Color Gamut (Typ.) : DCI-P3 98% (CIE1976)
Viewing Angles (CR≥10) : 178° (Right/Left), 178° (Up/Down)
Brightness (Typ.) : 450cd/m2
Contrast Ratio (Typ.) : 1300:1
Response Time (GTG*) : 14ms (Off- setting), 5ms (Faster- setting)
Feature:
DICOM Compliant: Yes
HW Calibration: Yes (PerfectLum)
HDR : HDR 10, HDR Effect
Display Mode : Multi-resolution Mode(8/6/4MP), Pathology Mode
Video Signals:
input Terminals: HDMI x1, DisplayPort x2
Connectivity:
USB : 1 upstream, 2 downstream
Power:
AC Input : 100-240Vac, 50-60Hz
Power Consumption (Max.) : 65W
Power Consumption (DC Off) : Less than 0.3W
Certifications & Standards: IEC(IEC 60601-1 / IEC 60601-1-2), EN(EN 60601-1 / EN 60601-1-2) IEC(IEC 60950-1 / IEC 55032, 55024), EN (EN 60950-1 / EN 55032, 55024) cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) FCC (FCC part 15 Class A), FDA (510(k) (Class II)), RoHS, REACH, WEEE
User Convenience:
PBP / Dual Controller: Yes (2PBP) / Yes
Reader Mode / Flicker Safe : Yes / Yes
Physical Specification:
Weight (with stand : 7.0 kg (15.4 lb)
Weight (without stand) : 5.6 kg (12.4 lb)
Borderless Design : 4-Side Virtually Borderless Design
Adjustable Stand : Tilt : -5~20°, Height Range : 110mm, Pivot : ±90°
