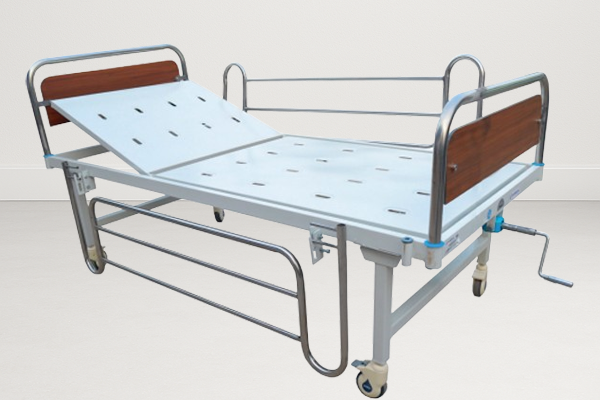

SIS 2003A

Semi Fowler Bed Manual

Description:

Type of bed -Semi fowler.
Number of bed platform sections -2.
Back rest section.
Leg section linkage welded with MS CRCA tube.
Backrest section linkage welded with MS CRCA tube.
Manual adjustments- Backrest through two screw systems with thrust bearings individually maneuvered by handle for semi fowler bed.
Back rest - min 45 % of the frame length.
The bed has head & foot panels detachable by hand without need of any tool.
Screw mechanism welded with ERW MS tube in M.S. cover made from ERW tube.
Material of handle are made with MS.
Provision of castors- H' Type Legs with 600 mm Height with 125 mm dia High Grade Synthetic Body Castors, two with brake, two w/o brake.
Number of hooks in IV Pole -2.
Number of sections in mattress -2.
Have Provision of collapsible Railing.
Finishing & workmanship of high standard.
All corners rounded off with no sharp corners and holes are burr free.
Saline rod provision have four locations on the bed platform to hold stainless steel Telescopic Saline rod 12mm dia with 15.87 mm dia x 1.2 mm stainless steel.
Provision for mounting of syringe pump have outer covering tube with a knob to mount syringe pump.

Material And Dimensional Parameters:

Size of Buffer: 100mm.
Overall Length of bed: 2050mm.
Overall width of bed: 900mm.
Bed Platform frame: 2070 mm L x 910 mm W.
Mattress Platform size: 1970 mm L x 790mm W.
Overall length of Back Rest: 775mm.
Overall width of Back Rest: 750mm
Overall length of Fix Section: 150mm.
Raised backrest angle: 65 degree.
Dimensions for Fitting of frame with ERW tubes diameter 31.75 mm x 1.2 mm thick and diameter 22.22 mm x 1.2mm thick and MS sheet having thickness 3.0 mm.
Diameter of Four corner rubber buffers: 75mm.
Diameter of MS tubular: 30mm.
Diameter of SS Laminated: 30mm.
Material of head and foot panels: SS.
Colour of mattress cover: Blue.
Thickness of PU foam of mattress: 4 inch.
Density of PU foam of mattress: 40.
Bed frame tube size: 60mm x 30mm x 1.6mm.
Material of collapsing railing- MS.
Manual collapsing railing on both side.
Patient Working Load: 135kg.

Operational Requirement:

Accessories & Mattress:

MS Powder coated urine Bag Holder - 1no.
Saline Stand- 1no.
Chart holder is MS made.
Mattress Platform Surface thickness: 1.2mm.
Two section mattresses with 4” thick PU foam of minimum 40 density covered with PVC.
It is made of waterproof, breathable fabric separated by zip on three sides with lower cover part made of Rexene. Mattress cover fire resistant and resist liquid ingression.
