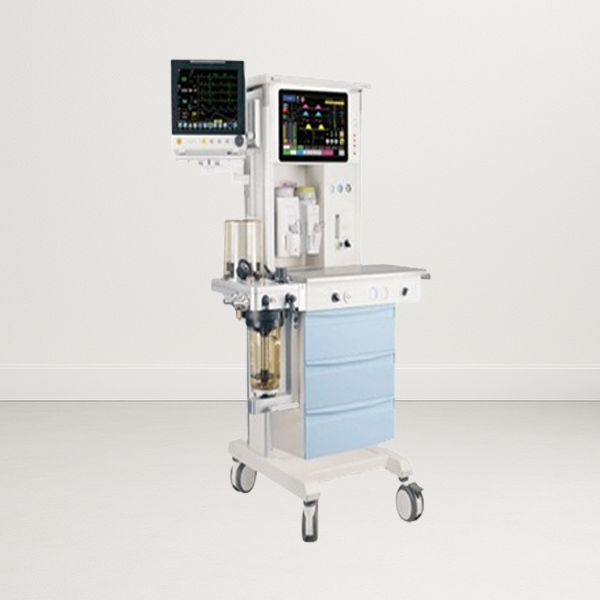

Anaesthesia Workstation along with Patient Monitor
Overview
Anaesthesia Workstation is a modern, integrated anaesthesia delivery system designed for adult, paediatric, and neonatal patients. The workstation combines a precision ventilator, circle absorber system, vaporizers, and advanced monitoring capabilities to ensure safe and reliable anaesthesia delivery in operating theatres.
The system supports low flow and minimal flow anaesthesia, improving patient safety while optimizing anaesthetic agent consumption. The integrated patient monitoring system provides comprehensive real-time monitoring of vital parameters for enhanced clinical decision-making.
Anaesthesia Workstation Specifications
System Configuration
- Fully integrated Anaesthesia Workstation with Ventilator, Circle Absorber and Vaporizers
- All major components from same manufacturer – SI Surgical
- Suitable for Adult, Paediatric and Neonatal patients
- Supports Low Flow and Minimal Flow Anaesthesia
Display & User Interface
- 15.6"TFT touch screen, optional 8",12"
- Customizable screen layout
- Display of: 1.Waveforms 2. Ventilator parameters 3. Gas flows 4. Loop graphics
- Capability to display: 1. Pressure-Volume (P/V) Loops 2. Flow-Volume (F/V) Loops
Power Battery
- Internal rechargeable battery backup: 90 – 120 minutes or more
- Ensures uninterrupted operation during power failures.
Patient Data Management
- Entry of patient demographic data: 1. Age 2. Weight 3. Height
- Automatic Ideal Body Weight calculation
- Capability to integrate AGM (Anaesthesia Gas Monitoring Module)
Once AGM is integrated:
- Displays gas consumption
- Displays anaesthetic agent uptake
- Shows per patient anaesthetic usage after surgery
Gas Mixing & Safety Features
- Mechanical mixer for: 1. Oxygen 2. Nitrous Oxide 3. Air
- On-screen virtual flow meters
Safety Systems
- Anti-hypoxic guard
- Automatic N2O cut-off during O2 failure
- Visual and audible alarms
- Oxygen flush:1. 25 – 70 L/min 2. Usable in all ventilation modes without affecting tidal volume
Manual ventilation possible with:
- 100% Oxygen
- Simultaneous delivery of volatile anaesthetic agents
- Even during power or battery failure
Gas Supply System
- Compatible with Central Gas Pipeline Supply
- Pin Index Safety System for cylinders
- Digital display of: 1.Central gas pressure 2. Cylinder pressure
- Independent Fresh Gas Outlet for: 1. Bain Circuit 2. Magill Circuit
- Integrated Auxiliary Oxygen Flow Meter
Vaporizer System
Supplied with:
- Sevoflurane Vaporizer
- Isoflurane Vaporizer
Optional:
Features:
- Mechanical control
- Temperature compensated
- Pressure compensated
- Flow compensated
- Transport lock for hermetic sealing
- No calibration required for lifetime
Circle Breathing System
- Transparent Autoclavable Soda Lime Canister
- Capacity: 1.4 – 1.5 Litres
- Vertical design during operation
- Circle Bypass Facility Automatically activated when canister is removed
- Integrated Passive AGSS Anaesthesia Gas Scavenging System
Anaesthesia Ventilator
Integrated Electronically Controlled Ventilator
Technology Options:
- Turbine / Volume Reflector / Piston / Bellows / Proportional Valve
Ventilation Parameters
Tidal Volume: 10 ml – 1500 ml
Respiratory Rate: 1 – 100 BPM
I:E Ratio: 1:2 – 1:8
Peak Flow: 120 – 150 L/min
PEEP: Electronic PEEP facility
Displayed Parameters:
- Minute volume
- Peak pressure
- Plateau pressure
- PEEP
- Alarm limits
- Alarm messages
Ventilation Modes
- Manual / Spontaneous (MAN/SPON)
- Volume Controlled Ventilation (VC-CMV)
- Pressure Controlled Ventilation (PC-CMV)
- SIMV-VC
- SIMV-PC
- Pressure Support with Apnea Backup
- PRVC
Anaesthesia Gas Monitoring(Optional Module )
Side-stream sampling technology.
Displays:
- Inspiratory & Expiratory: 1.O₂ 2. CO₂ 3.Anaesthetic Agents
- Age specific MAC values
Sample gas returned to breathing system.
Technical Specifications - Patient Monitor
System Type
High-End Modular Multi-Parameter Patient Monitor
Display:
- 15.6"/18.5"High resulotion TFT LCD Touch screen
- Colour display
- Highly visible Alarm Light
Displays:
- 10 waveform display up to 12-lead ECG analysis
- Customizable screen layouts
Monitoring Parameters (Standard)
Simultaneous monitoring:
- ECG
- SpO₂
- RESP
- 2 × TEMP
- 2 × IBP
- NIBP
Upgradeable modules:
- EtCO₂
- AGM
- Entropy / BIS
- NMT
- Cardiac Output
Patient Modes
- Adult
- Paediatric
- Neonatal
Includes OxyCRG mode.
Data Storage
- Trend data: 168 hours graphical and numerical
- Snapshot memory: 200 events
- Full disclosure: 72 hours waveform storage
ECG Monitoring
- 12-lead ECG capability
- Simultaneous 4-lead analysis
- Smart lead fail detection
- ST Segment analysis
- ST trend for Adult / Paediatric / Neonatal
- Full arrhythmia detection
- Atrial Fibrillation detection
NIBP Technology
Smart cuff pressure control:
- Faster measurement
- Improved comfort
- Artifact rejection
SpO₂ Technology
- Motion artifact rejection
- Accurate detection at low perfusion
- Displays: 1. Pleth waveform 2. Perfusion Index 3. SpO₂ value
Advanced Monitoring
Supports:
Used for fluid therapy guidance in ventilated patients
Connectivity
- USB export of trend data
- Password protected
- Slave display connectivity
- Printer connectivity: 1. Laser printer 2. Network printer
Recorder
- 3-Channel Thermal Recorder
- Interchangeable between monitors
Battery Backup
4 hours battery backup
ETCO₂ Module
- Side-stream measurement
- Displays: 1. EtCO₂ 2. FiCO₂ 3. Respiratory Rate 4. Waveforms
Certifications
- FDA Approved
- CE Certified
- BIS
- ISO 13485
Monitor designed to withstand accidental drop.
Scope of Supply
Anaesthesia Workstation

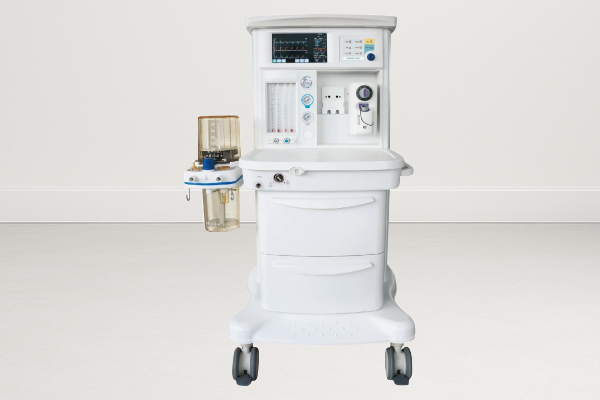

- SI Surgical Adonis-200A Advance
- Anaesthesia Gas Monitor (AGM)
- Isoflurane Vaporizer
Accessories
Breathing System
- Adult Reusable Patient Circuit – 1 No
Patient Monitor
Standard Ports:
- ECG
- NIBP
- SpO₂
- RESP
- 2 × TEMP
- 2 × IBP
Accessories supplied:
a. ECG Cable with 5-Lead Wire – 1 Set
b. Adult SpO₂ Sensor – 1 No
c. Paediatric SpO₂ Sensor – 1 No
d. NIBP Hose – 1 No
e. Adult NIBP Cuffs – 1 Box
f. Paediatric NIBP Cuffs – 1 Box
g. Wall Mount – 1 Set
h. ETCO₂ Module with Accessories
