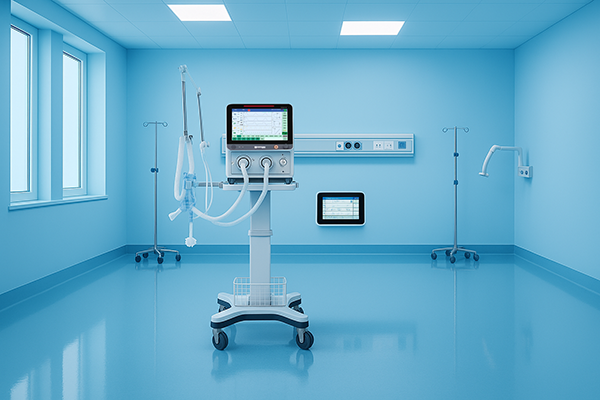

ICU Ventilator

Technical Specifications

• The ventilator supports both Invasive and Non-Invasive ventilation.
• Microprocessor controlled system suitable for Infant, Paediatric and Adult ventilation.
• Electromagnetically compatible hinged arm holder provided to hold the breathing circuit.
• Built-in colour TFT touch display (12.1" – 15") for waveforms and monitored values. 1. Touch screen operation with encoder knob. 2. Integrated display (external display not required). 3.  Adjustable viewing angle.
• Integrated volumetric EtCO2 measurement and FiO2 monitoring.
• Display of the following parameters and indicators: 1. Ventilator mode status indicator  2. Battery indication 3. Pressure vs Time waveform 4. Flow vs Time waveform 5. Volume vs Time waveform 6. Alarm settings 7. Pressure vs Flow loop 8. Volume vs Flow loop 9. Pressure vs Volume loop
• Colour-coded display for patient breathing patterns.
• Ability to display two waveforms and two loops simultaneously on a single screen during ventilation with facility to store reference loops or screenshots.
• Automatic compliance and leakage compensation for circuit and ET tube during both inspiration and expiration phases.
• Event and alarm logbook with date and time recording.

Ventilation Settings

• Tidal Volume: 2 ml – 2000 ml
• Inspiratory Pressure: Up to 120 cm H2O
• Respiratory Rate: Up to 300 bpm
• Apnoea Backup Rate
• СРАР / PEEP
• Pressure Support: Up to 40 cm H2O or more
• Pause Time and Flow Cycling
• Pressure or Flow Trigger
• Inspiratory Flow: Up to 180 LPM

Monitoring Parameters

The ventilator monitors and displays:

• Airway Pressure (Peak & Mean)
• Tidal Volume
• Minute Volume
• Driving Pressure
• Respiratory Mechanics
• Lung Protective Monitoring
• FiO2
• Plateau Pressure
• Resistance and Compliance
• Occlusion Pressure
• Pressure, Flow and Volume curves
• Selectable alarms for all monitored parameters

Modes of Ventilation

The ventilator supports advanced ventilation modes including:

• Assist/ Control (A/C)
• Volume Control (VCV)
• Pressure Control (PCV)
• Pressure Support Ventilation (PSV)
• SIMV with Pressure Support (Pressure & Volume Control)
• PEEP
• Inverse Ratio Ventilation
• Airway Pressure Release Ventilation (APRV)
• Non-Invasive Ventilation (PSV, CPAP and HFNC)
• Apnea Ventilation with user selectable volume and pressure control
• Work of Breathing (WOB) Index and RSBI monitoring
• High Flow Oxygen Therapy (HFOT)
• Non-Invasive Ventilation in CPAP and PSV modes

Safety Features

Built-in safety alarms for:

• High and Low Airway Pressure
• High and Low Minute Volume
• Power Failure
• Low Oxygen Supply
• High Respiratory Rate
• Air Source Failure

System Operation

The ventilator operates through:

• Built-in turbine or compressed air system
• High pressure oxygen input
• Pipeline air supply
• Internal rechargeable battery during AC power failure

Advanced Monitoring & Procedures

Supports advanced procedures such as:

• P/V Flex Points
• P0.1 measurement
• NIF (Negative Inspiratory Force)

Also includes lung mechanics monitoring with numeric display of resistance and compliance.

Humidification System

Supplied with Electronic Heated Respiratory Humidifier featuring:

• LED display for delivered gas temperature
• Automatic or adjustable temperature control
• Autoclavable humidifier jar

Additional Features

• Demonstration of quoted model available.
• Inbuilt nebulizer synchronized with inspiration.
• Communication interfaces: RJ-45 / RS-232.
• HL7 compatible for hospital connectivity.
• Data storage facility for minimum 72 hours.

Sensors & Components

• Flow sensor using differential pressure or hot wire technology at expiratory end.
• Reusable, maintenance-free and autoclavable sensor.
• Reusable and autoclavable expiratory unit with valve response time <15 mSec.
• Oxygen sensor type: Galvanic / Paramagnetic / Non-depleting.

Power Backup

Internal rechargeable battery with minimum 2.5 hours backup.

Standard Accessories Supplied

• Reusable silicone Patient Breathing Circuit (Adult & Paediatric)
• Reusable Non-Invasive Ventilator Masks 1. Adult -3 sizes  2.Paediatric - age specific  3. sets each
• HME Filters - 10 Nos.
• Heated respiratory humidifier
• Nebulization assembly compatible with ventilator circuit
