LED OT Light Double Dome
At SI Surgical Co.,we manufacture top-quality OT (Operation Theatre) lights to offer surgeons precision in their surgical procedures. Our company is one of the best OT light manufacturers and suppliers. We focus on the demand for modern operating rooms. Our professionals work dedicatedly to crafting incredible lighting solutions after researching the needs and demands of the surgeons well.
Our Crystal HD lights not only enhance visibility, provide precision, and reduce shadows during surgical procedures, but they also lead the way in energy efficiency. As the best OT manufacturer, we design our lights with adjustable intensity for distinct surgical environments, helping your hospital save on utility bills while providing superior lighting solutions.
Shadows during surgeries create trouble for surgeons, and we consider this while manufacturing our lights. Our mind-blowing designs offer consistent lighting, reduce shadows, and aid surgeons in getting an optimum amount of light without shadows, regardless of their position during the surgery.
Our OT Light Models

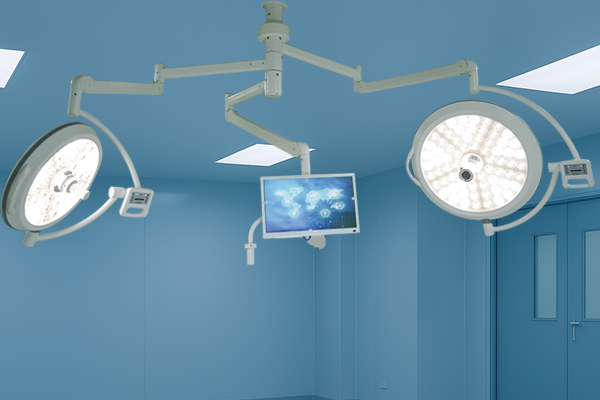

- Crystal HD with Camera
- Crista Hi LED
- Cristal HD
- LED OT Light Flower 61+61
- Magnus HD LED OT Light Single
- Magnus HD LED OT Light Double
- Z Series 400+400
- Z Series 400 Mobile Light
- Z Series 400
- E-Series Mobile Examination Light
- S 48 Mobile
- S48+S48 Advance
-
Get Remarkable Lights for Operation Theatre With Us!
Our operation theatre lights are designed in a lightweight structureto offer the surgeons a smooth and seamless experience. The price of our OT Lights is budget-friendly. We use high-quality materials to design our products. With rigorous testing, we ensure that our OT lights meet all the safety standards and flawlessly perform in the operation theatre.
Our OT lights are easy to clean and ideal for various medical settings. Their flexibility makes them worth buying.
From normal to complex surgeries, our OT lights will stand out and help the surgeons during their surgical procedures. SI Surgical Co. is always open at your service. Our dedicated team will fully support you by handling your order or any query.
You can connect with SI Surgical Co. and order OT lights to perform surgery faster.
Standard features:
- Color temperature adjustment function
- Brightness adjustment function
- One-click RGB function
- One-key laparoscope function
- Dual control line function
- Deep cavity function
- Shallow Functions
-
Main technical parameters
Illumination (LUX at 1M distance) : 40000-160000
Color temperature (K) : 3800 -5700
Spot diameter (mm) : 1 00-300
Lighting depth (mm) : ≥1200
Dimming : 1-100
Color Rendering Index CRI : ≥97%
Color reproduction index Ra : ≥97%
Temperature rise of the operator's head (℃) : ≤ 1
Temperature rise in the surgical working area (℃ : ≤2
Operating radius (mm) : ≥2200
Working radius (mm) : 600-1800
voltage : 100-240VAC 50 / 60Hz
input power : 400VA
Average life of lamp (h) : ≥60000
Lamp power : 3W /3V
Optimum installation height (mm) 2800 3000 2800 3000 : 2800-3000
Specifications
Compression Standard
Video Compression : Main stream: H.264/H.265 Sub stream: H.264/H.265/MJPEG Third stream: H.264/H.265/MJPEG
H.264 Type : Baseline Profile/Main Profile/High Profile
H.264+ : Support
Video Bit Rate : 256 Kbps – 16 Mbps
Audio Compression (-S) : G.711/G.722.1/G.726/MP2L2/AAC/PCM
General
Operating Conditions : -10 °C to +60 °C , Humidity 95% or less (non-condensing)
Power Supply : DC12V±25%，1.5A
Power Consumption : 5 W
Dimensions : 78.9*45.4*43.5mm
Weight : 192g
Features
1/2.8” Progressive Scan CMOS
Up to 2 megapixel resolution
Motorized lens 4.7-47mm
Support H.265、AHD、CVBS
Audio/alarm/RS485/UART
Built-in Micro SD/SDHC/SDXC card slot
12V DC±25%
120dB WDR
3D DNR
Camera
Image Sensor : 1/2.8'' Progressive Scan CMOS
Min. Illumination : Color: 0.05Lux @ (F1.6, AGC ON), B/W: 0.01 Lux @ (F1.6, AGC ON)
Shutter Speed : 1/25 – 1/100,000 s
Lens : 4.7 mm to 47 mm, F1.4 F3.0, horizontal field of view: 58.6° to 6.4°
Day & Night : IR cut filter with auto switch
Digital Noise Reduction : 3D DNR
WDR : 120dB
Network Storage : Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x,Qos,FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP,RTP, TCP/IP, DHCP, PPPoE, Bonjour
Standard : ONVIF, ISAPI
