X-ray & Digital Radiography

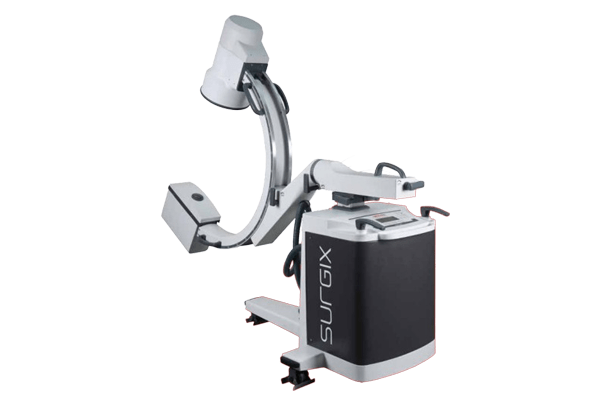

C-arm Machine

Technical Specifications

System Speci­cations

• Models: 3.5 kW
• X-Ray Ripple Frequency: High Frequency, 100 KHz
• Fluoroscopy Modes: Manual Fluoroscopy, Pediatric Mode, Boost Fluoroscopy, Obese Mod Semi-Auto Mode ,Auto Mode, Pulse Mode
• Fluoroscopy mA Range : 0.3mA to 8 mA
• Fluoroscopy Timer : Digital timer 5 Min (300 Secs)
• Radiography Mode : 0.2 to 200 mAs
• KV Range : 40 to 110 kV
•

X-Ray Tube

• Type: Stationary Anode
• Focal Spot: 0.6mm / 1.5mm
•

Control Panel

• Keyboard: Feather Touch key board with various controls
• Digital Display: Large Backlit LCD Display, displays operating modes, parameters, errors
•

C-Arm Stand

• Focus to I.I. Distance: 850mm
• Up-Down Travel: 450mm, Motorized
• Horizontal Travel: 220mm
• Orbital Range: 115 Deg., (-25˚ to +90˚)
• Panning Movement: ± 12.5 Deg.
• Locking: Manual Locking for horizontal, Panning & orbital Movement accessible for both sides
•

Image Intensi­er Chain

• Image Intensifier:  9 inch, Triple Field Thales make or Toshiba Make
• CCD Camera :

1. HD System: Sony Hi-Res B&W CCD Camera, HQ System: 1k X 1K resolution CCD Camera
2. Image Processing & Storage System: HD System: 100 Images inbuilt storage with Lan Connection to transfer images & USB port to store & transfer images on USB stick.

• HQ System: 150,000+ images inbuilt Storage ophon ; cine, DSA with DICOM send, print & store function.
• Monitor: HD System: 32” High De‑nition LED With split screen HQ System: 32“ High De‑nition LED with Split screen or 2 Nos 19” Medical Grade Monitors
• Input Power Supply: Single Phase, 220V + 10%, 50 Hz, 15Amps
