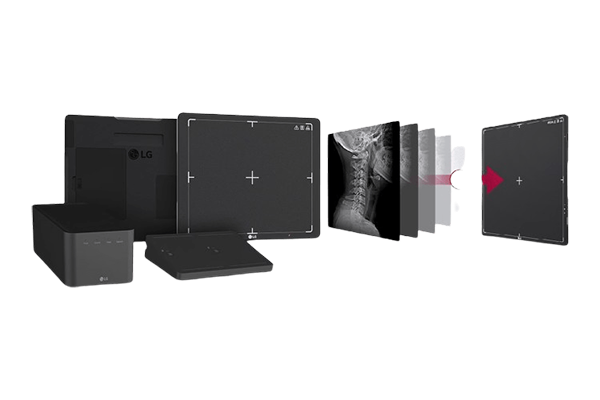

a-Si TFT Digital X-Ray Detectors
Increased Portability and Durability
Improved Design (Handle | 4-side chamfer)1) | Lightweight LG Digital X-ray's magnesium and carbon fibre design weighs a 3.7kg (17HQ701G), 3.2kg (14HQ701G) and 1.8kg (10HQ701G), and features a rear-sided handle with sculpted handgrips and chamfers for added portability. With digital x-ray devices increasingly being used outside hospital imaging rooms for emergency situations, mobility and practicality have become key areas of focus for optimizing medical practioner workflows.
IP68: Water Resistant & Dust-Tight | Enhanced Load Weight
The LG Digital X-ray Detector is IP68 rated and therefore protected against harmful contaminants such as water, dust and humidity. Its Level 6 dust-tight rating means that the device is protected against the ingress of dust, while its Level 8 water resistance rating means that it can withstand submersion for up to 30 minutes2). Additionally, LG DXD with a-Si TFTs now come engineered with a 400kg load capacity and a 200kg point weight3), a noticeable improvement over previous models.4)
Simplified Workflow
Reduced Image Transfer Times | Extended Battery Life | Hot Swap | OLED Display
LG Digital X-ray Detector delivers 1.5sec and 2sec5) transfer speeds for wired connections and wireless connections, respectively, to significantly reduce patient waiting times and increase workflow efficiency. Its bright OLED display lets users monitor device status in real time and make necessary adjustments. It also features 7.5 hours6) of battery life, which allows for up to 300 x-ray images on a single charge and can maintain up to a minute of power when swapping out batteries to ensure smooth image processing in emergency medical situations.
Specification:
Digital X-ray Detector With a-Si TFT
Dimension / Weight (Including battery): 460 mm x 460 mm x 15.6 mm, 384 mm x 460 mm x 15.6 mm,282 mm x 333 mm x 15.6 mm.
TFT Type: a-Si
Scintillator: CsI
Pixel Pitch: 140 ㎛
Image Area:
Number of Pixels: 3072 x 3072 pixels, 3072 x 2560 pixels,2048 x 1792 pixels.
TFT Active Area: 430.08 × 430.08 mm,358.40 x 430.08 mm,286.72 x 250.88 mm.
MTF:
MTF @ 0.5lp/mm (Typ.): 84%
A/D Conversion: 16 bit
Data Output:
Type: Wired / Wireless
WLAN: IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
Auto Exposure Detection: Yes
Cycle Time: 4.5 sec (Wired) / 5 sec (Wireless)
Full Image Transfer (Typ.) *Without window time: 1.5 sec (Wired) / 2.5 sec (Wireless)
Durability:
Maximum Load Weight: Full (Uniform Load) : 400 kg (881.8 lbs),) Local (Point Load) : 200 kg (440.9 lbs)
Watertightness: IP68
Sensor Protection Plate: Carbon Fiber Plate
Battery:
Operation Time: 300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
Charging Time: 3 hrs (Typ.)
Hot Swap:Yes (1 Min)
Accessories:
Cable: Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
Other: Battery Charger,2 x Battery Packs,Control Box.
Acquisition Workstation Software:
Installation Requirement:
OS: Microsoft Windows 10 (64 bit)
DB: MariaDB
Processor Options:Intel CPU Desk 6th gen i5 or above
RAM:8 GB
HDD:512 GB
