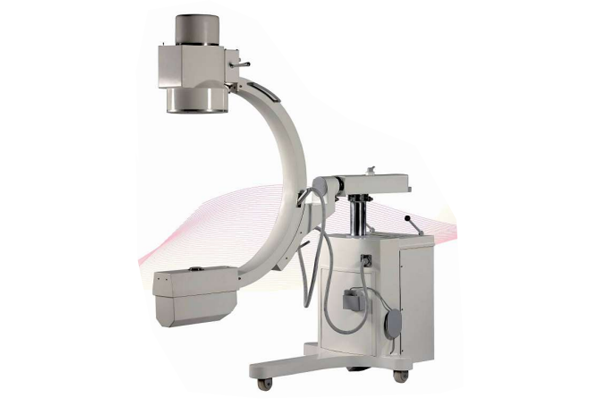

Image Intensifier
High Efficiency C-Arm Machine
Technical Specifications:
Anode Type: Stationery, Rotating
Frequency: 40 Khz, 40 Khz
Power: 3.5 Kw,6.3 Kw
Radiography Mode:
Kvp Output: 40 to 100 Kvp,40 to 110 Kvp
mA Output: upto 50 mA, upto 80 mA
mAs Range: 0.5 to 250 mAs, 0.5 to 250 mAs
Fluoroscopy Mode:
Kvp Output: 40 to 100 Kvp,40 to 110 Kvp
mA Output: 0.5-3 mA , 0.5-4 mA
Fluoro Timer: 0 to 5 min cumulative timer with buzzer, 0 to 5 min cumulative timer with buzzer.
X-Ray Tube :
Focal Spot: 0.6/1.0 mm, 0.3/0.6 mm
Image Intensifier: 9" Triple field, high gain, low dose image intensifier tube
Camera: High sensitivity, low noise CCD camera
Monitor: Two 17" imported Monochrome monitors with high density & low noise
Memory: 100 frames image storage memory, with full function remote control. Digital rotation throughout 360°.
Safety Precaution: Temperature sensor to cut off exposer after over heating of X-ray Tube head
Power Requirement: Single Phase, 230 VAC 10% 50 Hz, Standard 15 Amp plug socket
Optional: IMS Image Management System with PC with 1 kX1k Camera
