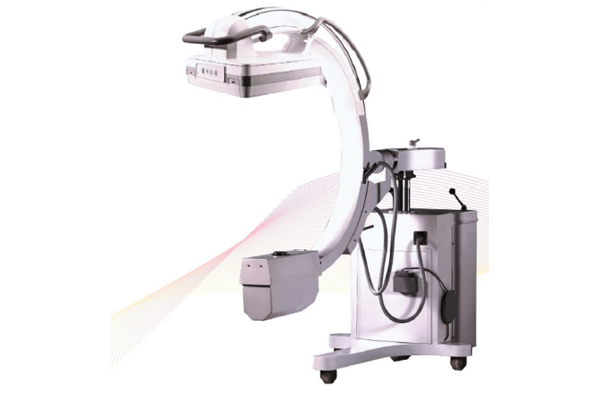

With Flat Panel Detector
High Efficiency C-Arm Machine
Technical Specifications:
General:
Mobile surgical high frequency C-Arm system with Flat Panel Detector suitable for all surgical & interventional procedures. +180 or -180°C (180 on both sides) rotation with safety stop
X-Ray Generator:
High Frequency X-Ray Generator.
Generator frequency: 50 KHz
Power Output: 3.5 KW
Rad KV: 40 to 110KV
Fluoro KV: 40 to 110KV
Rad MA range: 20 mA
Fluoro MA: 0.3-3.0 mA (Normal)
0.1-10 mA (Pulse fluoroscopy)
Pulse/frame rate instead of pulse time 1 sec to 10 sec.
Radiographic mAs: 1 to 25mAs
Auto Dose Rate Control (ADC) fluoroscopy
Manual KV selection during fluoroscopy
Boost fluoroscopy mode / HD Fluoroscopy
Digital fluoroscopic timer: 5 Minutes
Control:
Compact, Soft Feather Touch Key Board
Machine ON/OFF Switch.
Technique Selection: Fluoro and radio mode selection.
Backlight LCD Display of KV, mAs, time & mA.
Radiography: Manual and APR
Independent selection of mA and KV &mAs.
Fluoroscopic Timer: Five minutes cumulative timer with buzzer.
Fluoro mA: Continuously variable
X-RAY TUBE:
Dual focus Stationary Anode X-ray tube. (30KJ)
Focal spot size: Fluoroscopy -0.6 Sq mm RAD-1.5 Sq mm
Housing heat capacity: 200 KHU
Inherent filtration: 0.7mm. Al eq.
Collimation - Radiation free.
Flat Panel Detector (Make: iRay, Model: Mercu 0909X)
Receptor Type: Amorphous Silicon technology
Conversion Screen: CsI, FPD Size: 20cm x 20cm
Image Matrix 1K x 1K, Pixel pitch 139 µm
ADC conversion 16 bit
Monitor & Monitor Trolley
32" Flat screen IFD Monitor with Resolution 1kx1k
Horizontal and Vertical viewing angles of 170 degrees
Elegant Trolley for monitors
Separate Shelfs for keeping Memory & Stabilizer
C-ARM STAND:
Smooth Vertical Movement with actuator: 400mm
Horizontal Travel: 210mm, Depth of immersion: 650 mm
Rotation: ± 180 Degrees, Swivel: +/-12.5 deg.
Orbital movement: 115 deg. (+90 deg./-30 deg.)
Focus to I.I distance: 900 mm
Focus to 1.1 Clearance: 730 mm
Separate steering for controlling back and front wheel movements.
Image Processing & Memory System
Imaging system: DICOM image Compatible Computerized System
Auto Brightness, Image reversal
image rotation, functions on remote control
Memory function like save/ recall operable from memory panel & with wireless remote
Image resolution by averaging 2/4/8/16 factors.
Real time negative, contrast enhancement feature, Edge enhancement, LIH, Zoom, Image Rotation, Recursive Filter
horizontal and vertical Flip
Image integration function to reduce the image noise
image storage facility up to 50000 images,
system and supports image print
USB, LAN Ports
Power Supply Requirement
Single phase 200V-250V, 50Hz, 15 Amp.
Optional Accessories
Lead aprons, Thyroid Shield, Lead Goggles
Servo stabilizer of Voltage range of 150 Volt-260 Volt. (In-built)
other
Model is approved with AERB, BIS & CE
Warranty, AMC, CMC
Onsite QA as per AERB Guidelines
