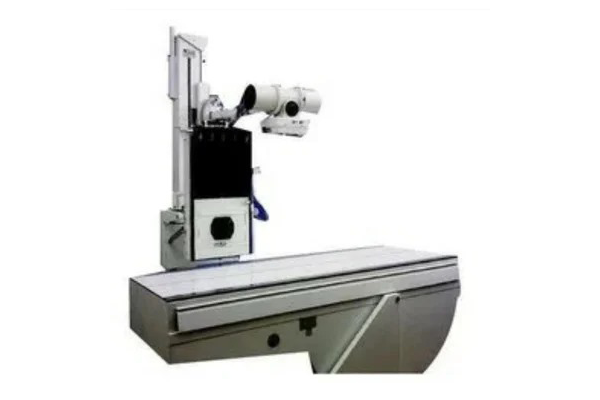

Vision 500
High Efficiency x-ray Machine
Technical Specifications:
- X-Ray Generator:
- High Frequency X-Ray Generator.
- Generator frequency: 50 KHz
- Power Output: 30 KW
- KV Range: 40 to 125KV in 2 KV/Step
- mA range: 500 Ma.
- Exposure Time (RAD): 1ms to 2 Sec in 144 steps
- As Range: 200mAs.
- Control:
- Compact, Soft Feather Touch Key Board.
- Floor/Wall mount Control Panel with spill proof design.
- Features
- Machine ON/OFF Switch.
- Digital Display of KV & mAs
- KV & mAs increase and decrease switches.
- Ready and X-Ray on switch with Indicators.
- Tube Focal Spot Selection Switch.
- Bucky Selection switch.
- Self-diagnostic programme with error code indicators for earth fault error, KV error, filament error & Tube's thermal overload.
- Tube overload protection (electronic) for mAS
- Automatic line voltage compensation.
- Anatomical programming for Radiography (APR) with 216 Pre- Programs.
- Dual action hand switch with retractable cord.
- X-Ray Tube:
- Dual focus Rotating Anode X-ray tube thermally protected.
- Focal Spot: 1 mm & 2 mm
- Anode heat storage capacity. 200KHU
- Pair of 8 meters H.V. Cable
- Collimator with auto shutoff
- HV Tank:
- Compact HV tank filled with H.D. transformer oil.
- Consists of HV & Filament transformer & HV rectifiers & HV Cable receptacles.
- Tube Stand
- Floor to ceiling Stand: Counter Balanced Tube Head (Rotatable +/-180 Degree),360 Degree Rotatable. Mounted on Floor Ceiling rails
- Manual Tilt Bucky Table:
- Manual Tilt Five Position Bucky Table
- Motorized reciprocating Bucky with grid of size 17.1/4" X 18.7/8" & grid ratio of 10:1-103 line/Inch
- Stainless steel cassette tray to accommodate maximum cassette size 17" X 14"
- Low absorption Carbon fibre material for Table top. Lateral Cassette Holder.
- Foot Step, Compression Belt, Hand Grip, Anti-collision & safety device,
- Vertical Bucky Stand:
- Floor mounted type Vertical Rucky Stand
- Oscillating grid of ratio 8:1, 85 lines/inch.
- Up & down Movement for Bucky.
- Fully counter balanced height adjustment.
- Stainless steel cassette tray.
- Suitable for cassettes up to 14" X 17".
- Chest stand for cassettes up to 14 x 17"
- Power Requirement:
- 3 Phase, 440 Volts AC 50Hz, 50 Amp, (30 KW).
- Optional Accessories:
- AERB Approved Whole Body Lead Apron: 2 nos.
- Hangers for Lead Apron: 2 nos.
- Thyroid guards: 2 nos.
- Gonadal Shield: 2 nos.
- Other:
- Warranty: 5 Years.
- 5 years CMC.
- Spare parts & accessory support for 10 years.
- Institute or Hospital will be registered & AERB through ELORA
- Certifications & Credentials:
- ISO-13485:2016 certified company.
- Product Approvals: AERB, BIS.
- Compliant with IEC 60601-1, IEC 60601-1-3, IEC 60601-1-2/61326-1, IEC 60601-2-54, IEC 61010-1-6 and IEC 62304
- Local Service centres.
- Proven record of accomplishment in Govt. Sector.
