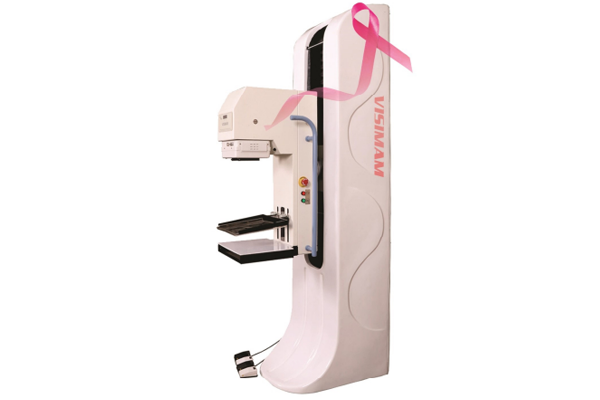

Visimam
Mammography
Groundbreaking Technology
Our High Frequency 40 Khz: HF HT generator adopts new IGBT tube & programmable logic array technology with 40KHz working frequency to contribute more stable power out put, less straggling-rays & high picture contrast.
incorporating the latest innovative technology, including revolutionary exclusive Automatic Self-adjusting Tilt Paddle.
This system provides unsurpassed image quality, while its automated features simplify operations & ensure consistent system performance and connection with CR/DR.
Easy To Use
The A.S.T. paddle (optional accessory) assures more uniform compression across the entire breast & improves immobilization of breast tissue, resulting in reduce mobile artifacts & superrior image quality.
Paddle prevents over- compression at the chest wall by showing pressure numeral therefore maximizing patient comfort.
The integrity exposure film 4mm deeterbreast tissue is visualized.
Multi- mammograms in one film....
Technical Specifications:
X-RAY GENERATOR:
Generator Type: 4 KVA, High frequency
Frequency : 40 KHz
KV. Scope: 20 KV-40 KV
MA Scope : 35mA(small)/150 mA(Large
MAS Scope : 500 MAS
X-RAY TUBE
Tube Type : Rotating Anode of Molybdenum
Focal Spot: 0.1-0.3 mm
Anode Heat Storage Capacity: 300KHU
Filtration: Inherent-1 mm Be/0.03 mm MO/Rh (Filter Change: Manual
X-ray Field adjustment: Manual with Collimator
Magnification factor : 1.5 times
U-ARM Module
Rotation : 150 Center rotation function. Rotation range: +180 –
Up/Down Movement: 735 mm-1315 mm Motor Driven
Oppress Pressure : Up to 300 N
Cassette compatibility : 180 x 240mm & 240 x 300mm
Compression : Flexible and multi-level smart Compression
Focal distance : 650mm
Compact Design: Min Haight 1.Im
Control:
Type: Microprocessor Controlled
Technic Selection : LED Display
Display type: Manual Two Point Technic (KV & mAs)
Key-board Type: Electronic feathertouch membrane key-board
Digital Display : KVP, MAS, Compression Force, Gantry Angle.
Control Switches: Main ON/OFF, READY, X-Ray, KVP UP/Down, mAS, UP/Down, Compression, De-Compression, Emergency Off, Gantry UP/Down, Compression Force Limit, Up/Down
X-ray Indication: Audible tone
Mains Over Load Protection : Mains ON/OFF with overload circuit breaker
Tube Overload Protection: Automatic
Automatic Fault detection: Yes
Fault Indication : Error Code with beep
KV Selection : 20 KV-39 KV
MAS Selection : Up to 300 MAS
Exposure process : Operator controlled KV & MAS
Exposure mode: Manual
Flat Paneel Detector (Make: iRay)
A complete imaging solution with cutting edge of performance integrated with offered Mammography System.
Specifications as below-
Detector Technology: Amorphous Silicon (ASI), Scintillator: Csi
Detector Size: 10" X 12", Effective Imaging Area: 24cmx30cm
Type: wireless, Pixel Matrix: 2816 x 3528, Pixel Pitch (um): 85 Micron
Spatial Resolution: 6 Lp/mm, A/D Conversion: 16 bit, MTF: 50%; DQE: 65% (1 lp/mm);
Chest Wall Distance (mm): <2, Image Reading Duration: <1.45, Interval Duration: <305
Imaging Display / Work Station
Desktop Workstation
15 processor with 4 GB RAM & 1TB HDD
19" Display of high Resolution
Operating console have a facility for patient identity entry, viewing and processing images, documentation
Operating console becomes ready in minimum time.
Image processing function like rotate, mirroring, zoom, move, Filter and printing etc are available.
Image storage capacity: 10,000 images
The System is DICOM 3.0 or higher version ready like send, receive, print, acknowledge etc.
Easy Integration and networking possible with other existing networking including IIIS, RIS & PACS
Dry Film Printer/Imager Available Optionally (Make: Carestream, Model: Dry View 5950)
Laser/Dry printer of-500 DPI Resolution,
2 online user configurable trays
capable of printing film of size 14x17, 11x14, 10x12 & 8x10 inches (any 2 at a time). The changing of film size is such that only film packet needs to be changed
Power Requirement : 220 VAC +/-10% 50 Hz. 5 KVA,
Accessories: Lead Apron
